Alloy Steel
HANS INDUSTRIES PVT LTD is unit of the UB Aggarwal group of industries which is a leading group in steel sector in the area. Hans Industries P. Ltd. is one of the leading Co. manufacturing structural items. Our Co. was established on the 7th November 2006 and we have started our production from the 1st of December, 2007.
Ours is the biggest re-rolling mill in size in the entire Saurashtra region. We are producing various type of the structural steel product like M S Beams, M S Channels, MS Flats, MS Angles, MS Rounds. Our vision is to produce the quality goods to satisfy the customized requirements of our customers. Our company is vertically integrated and we are not dependent for raw materials on others. This enables us to maintain quality uniformly in all batches. We are establishing the concast plant for the production of the M. S. Billets through Close Casting Route for maintaining quality of the output. Our manufacturing plant is ever-evolving to meet and satisfy every demand pertaining to Steel. Now we are going to offer a wide range of bars in Carbon and Alloy Steel. Our product portfolio consists of Round Bars in various sizes and grades as follows.
4140 | 8620 | 20MNCR5 | EN24 | EN19 | EN31 and sizes will be 16mm to 130mm
At HANS, we also manufacture unique steel grades as per customer's requirements.
Inquiry

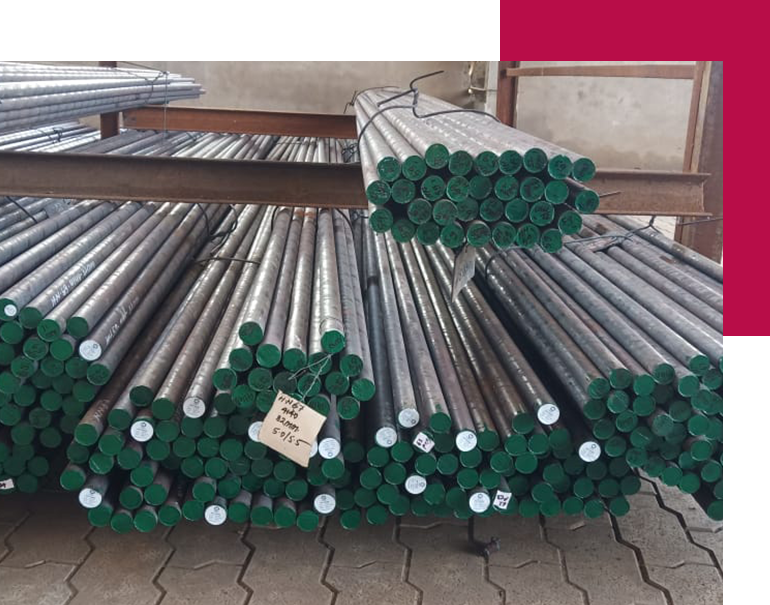

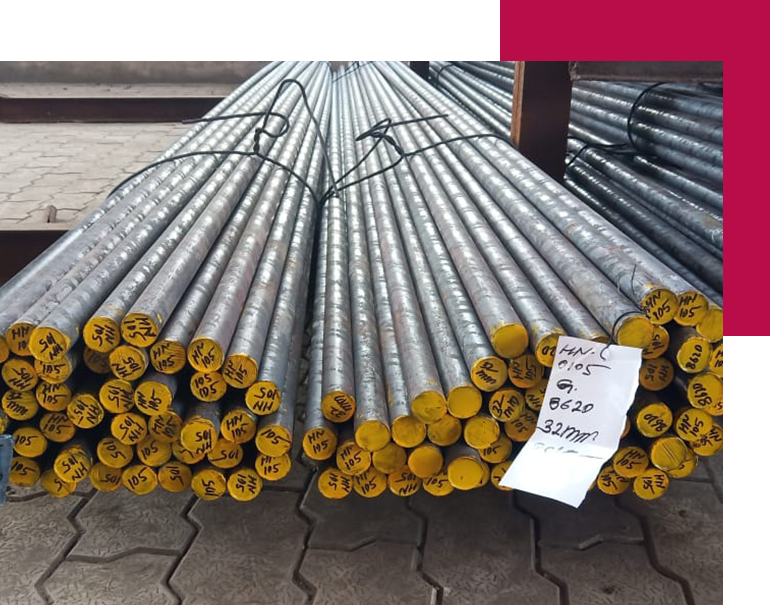

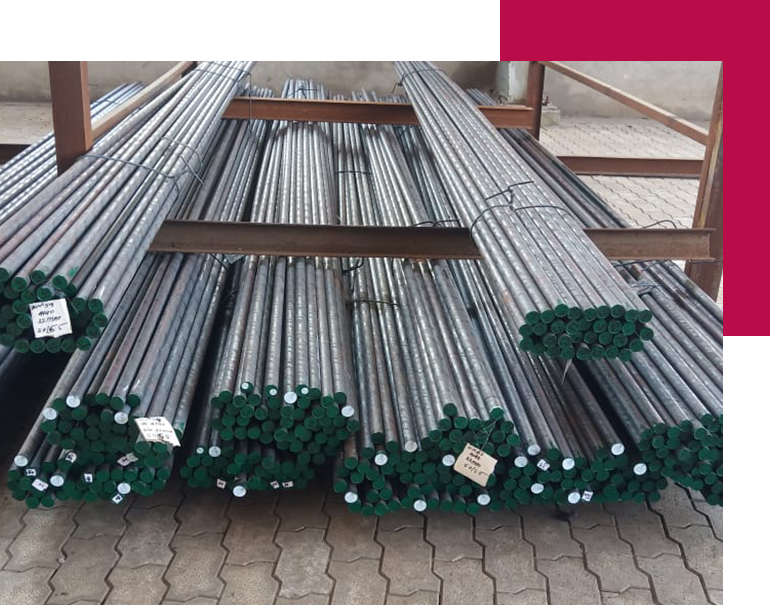

Round Bar (12mm – 140mm)
Steel Rounds are the basic raw material used in a variety of engineering, auto, and other ancillary industries. TK Steels boasts of the best reduction ratios in the industry and hence our products give the best forge ability and machinability values to the customers. We have the widest range in terms of Mild Steel, Carbon steel, Alloy Steel, Free Cutting Steel, and all Special Grades.
Size
| 12mm | 21mm | 30.5mm | 42mm | 52mm | 63mm | 75mm | 85mm | 95mm | 105mm |
| 14mm | 22mm | 31.5mm | 44mm | 56mm | 65mm | 80mm | 90mm | 100mm | 110mm |
| 16mm | 23mm | 32mm | 45mm | 58mm | 70mm | – | – | – | 120mm |
| 17mm | 23.5mm | 34mm | 46.5mm | 60mm | – | – | – | – | 125mm |
| 18mm | 24mm | 36mm | 48mm | – | – | – | – | – | 130mm |
| 19mm | 25mm | 38mm | 50mm | – | – | – | – | – | 140mm |
| 20mm | 26mm | 40mm | – | – | – | – | – | – | – |
| – | 26.5mm | – | – | – | – | – | – | – | – |
| – | 27mm | – | – | – | – | – | – | – | – |
| – | 28mm | – | – | – | – | – | – | – | – |
| – | 29mm | – | – | – | – | – | – | – | – |
| – | 30mm | – | – | – | – | – | – | – | – |
Square Bar/RCS (30mm – 125mm)
Round Cornered Square bars or RCS are mainly used for drop forged components in the automotive industry. Our RCS Products have a uniform internal structure and a very good surface quality. We manufacture a wide range of RCS bars in various grades and sizes, according to the customer's requirements.
Grades
EN-1A, EN-8 *, EN-8D *, EN-8M, EN-9, EN-15, EN-15AM, EN-16, EN-18, EN-19, EN-24, EN-31, EN-32B, EN-45, EN-45, EN353, 15Cr3, 31cRV3, 40Cr4, 42CrMo4, 16Mncr5, 20mncr5, 20Mn2, 27MN2, 31Cr4, SAE - 1010, SAE - 1018, SAE - 4042, SAE - 4140, SAE - 8620, SAE - 52100, SAE - 1524, SCM - 435, 10B - 21, 15B - 25, C - 20, C - 50, 35C8
Size
|
30mm
|
40mm
|
55mm
|
70mm
|
82mm
|
90mm
|
120mm
|
|
36mm
|
50mm
|
63mm
|
75mm
|
85mm
|
100mm
|
125mm
|
Hex Bar (17mm – 78mm)
Steel Hexagons are long steel bars having 6 sides. They are used in a number of engineering products such as nuts, bolts, hydraulic fittings, etc. We have a fully dedicated rolling mill to manufacture Hex Bars in almost all grades and sizes. We have been pioneers in hex bars since 1978.
Grades
EN-1A, EN-8 *, EN-8D *, EN-8M, EN-9, EN-15, EN-15AM, EN-16, EN-18, EN-19, EN-24, EN-31, EN-32B, EN-45, EN-45, EN353, 15Cr3, 31cRV3, 40Cr4, 42CrMo4, 16Mncr5, 20mncr5, 20Mn2, 27MN2, 31Cr4, SAE - 1010, SAE - 1018, SAE - 4042, SAE - 4140, SAE - 8620, SAE - 52100, SAE - 1524, SCM - 435, 10B - 21, 15B - 25, C - 20, C - 50, 35C8
Size
| 17mm | 27mm | 38mm | 64mm |
| 19mm | 29mm | 40mm | 68mm |
| 21mm | 30.5mm | 43mm | 70mm |
| 22mm | 32mm | 49mm | 74mm |
| 24mm | 34mm | 54mm | 78mm |
Annealed & Straightened Bars
Annealing, in metallurgy and materials science, is a heat treatment that alters the physical properties of a material to increase its ductility and reduce its hardness, making it more workable. It involves heating a material to above its recrystallization temperature, maintaining a suitable temperature, and then cooling. We can provide you Annealed Steel Bars of Grades such as SAE4140, En19, etc.
Bar straightening is a necessary step in the heat-treating process of many components. Due to mechanical deformation and manifestation of stresses during heating and quenching, parts often warp beyond acceptable tolerances with respect to straightness and flatness. Therefore steel straightening services become a necessity to bring the parts back within acceptable ranges.
Size
| 12mm | 21mm | 30.5mm | 42mm | 52mm | 63mm | 75mm | 85mm | 95mm | 105mm |
| 14mm | 22mm | 31.5mm | 44mm | 56mm | 65mm | 80mm | 90mm | 100mm | 110mm |
| 16mm | 23mm | 32mm | 45mm | 58mm | 70mm | – | – | – | 120mm |
| 17mm | 23.5mm | 34mm | 46.5mm | 60mm | – | – | – | – | 125mm |
| 18mm | 24mm | 36mm | 48mm | – | – | – | – | – | 130mm |
| 19mm | 25mm | 38mm | 50mm | – | – | – | – | – | 140mm |
| 20mm | 26mm | 40mm | – | – | – | – | – | – | – |
| – | 26.5mm | – | – | – | – | – | – | – | – |
| – | 27mm | – | – | – | – | – | – | – | – |
| – | 28mm | – | – | – | – | – | – | – | – |
| – | 29mm | – | – | – | – | – | – | – | – |
| – | 30mm | – | – | – | – | – | – | – | – |
Ingots & Billets
Size
| 4″ |
| 5″ |
| 6″ |
| 8×9″ |
| 10×12″ |
Wire Rods/Coil Weight (6mm- 28mm)
We manufacture our wire rods through the latest direct hot charging technique, via our concast facility. The product is rolled in our fully automatic steel rolling mill under the banner of Prime Steel processors. We produce low carbon, medium carbon, high carbon, cold heading quality(CHQ).
Size
| 6mm | 11.5mm | 20mm |
| 8mm | 12mm | 23mm |
| 9mm | 13mm | 24mm |
| 10mm | 13.5mm | 28mm |
| – | 14mm | – |
| – | 15mm | – |
| – | 16mm | – |
| – | 17mm | – |
| – | \ | – |
